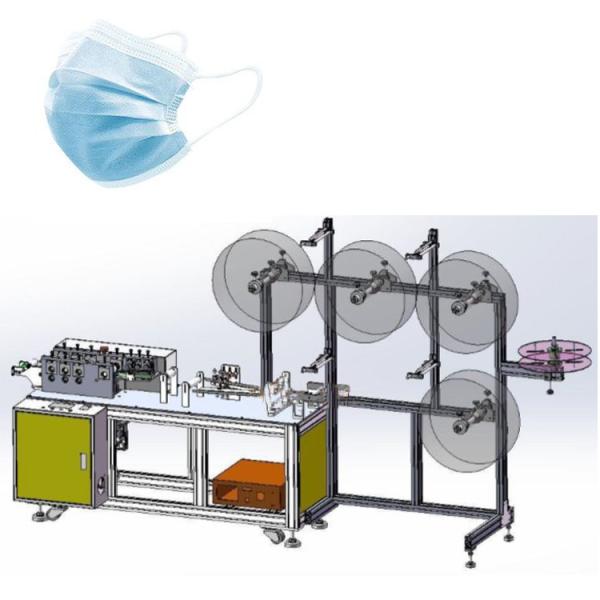

Semi automatic flat mask production line adopts advanced design,
only need to put the raw material on the feeding rack, after the
completion of the modulating, the machine can realize automatic
production. It only need one person to operate and fully realize
the whole process of automatic production. The equipment also
adopts ultrasonic welding, which is beautiful, sanitary,
environmental friendly.
The output is 100-120 pcs/min. The length of nose bridge bar can be
adjusted. The product size error is ±1mm. According to the needs,
replacing parts of the molds can achieve a variety of
specifications of mask pieces. This machine can produce all kinds
of non woven masks, smooth cloth masks, gauze masks, activated
carbon masks, double-nasal line masks. Support 1-5 layers of non
woven mask sheet production.
1. Introduction to equipment
The automatic mask body machine is mainly used for the automatic
forming of flat plane masks. After the entire roll of fabric is
unrolled, it is driven by rollers.Thefabric is automatically
unfolded by automatic hemming, hemming, and the nose bridge. In
both sides, the sealing is achieved by ultrasonic welding on both
sides. After the ultrasonic side sealing, cuttingisperformed by
a cutter, and thewhole process is automatically controlled. Only
one person is required to operate this machine. The scientific
and reasonable mechanicaltransmission configuration makes this
machine extremely efficient. The special welding wheel and
cutter wheel design have good abrasion resistance and greatly
increase the service life of the product.
2. Equipment installation and configuration requirements
Equipment size: 3500mm (L) x 1100mm(W) x 2100mm (H);
Equipment weight:1600KG
Working voltage: AC220V,50 / 60HZ, rated power: 4KW
Compressed air: 0.5-0.7Mpa
Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no
flammability, corrosive gas, no dust (cleanness noless
than 100,000)
3. Equipment characteristics
The machine adopts aluminum alloy structure, small size, stable
operation and low scrap rate;
Equippedwith photoelectricdetection and automatic counting, which
can control the production speed and high output;
It can produce 100 pieces per minute, and can produce (3-6 layers)
multilayer masks.
