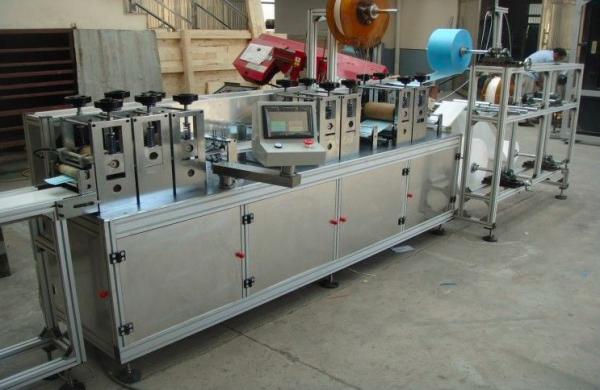

1. Performance Characteristic

We adopt the international advanced technology for this machine , the AL Bar transported by feed cam , the length of the AL Bar can be adjust freely . It also can be added double AL Bars if necessary . And the machine is low power consumption and much lighter .

2. Technical Parameter :

2.1 Supply Power: AC380V or 220V 50HZ

2.2 Power : 6KW

2.3 Designed Speed : 200pcs/minute

2.4 Optimum Speed : 100 -160pcs/minute

2.5 Dimensions : 6000*800*1500mm

2.6 Net Weight:1200kg

Operating Program

4.1 Place the non-woven farbics ,AL Bar(2.8-3mm/w) ,meltblown on the feeding framework ,

4.2 Adjust the hand wheel to make the centers in a same line.

4.3 Open the main machine and ultrasonic welding equipment

4.4 Check the position of the edge folding pressure plate

4.5 Adjust the position of the AL Bar .

4.6 Check the position of the reshape roller , to be sure the 3 folding in the center of the mask .

4.7 Adjust the welding pressure to be sure welding fastness .

4.8 Adjust the position of the blade to be sure the mask cutting accuratly. Adjust the blade to be higher 0.5-0.7mm than the roller surface .

5. Maintenance

5.1 Scheduled check the main parts ,such as the axletree bearings ,ensure all the bearing lubricating enough.

5.2 Scheduled check the welding head mechanical wearing conditions , adjust the pressure to a suitable state , try to adjust the pressure to be minimum at the station of welding well .

5.3 Often check the tensile force of the raw material coils ,ensure all the materials running in step & the surface with no laxation.

5.4 Please adjust the pressure of the cutting blade to avoid blading damage.
